铸件尺寸(单位:mm): 160 x 160 x 15 mm

压铸机品牌：

模具生产商：
Ningbo Shengji Machinery Co., Ltd.

铸件使用场合、工作条件：
This casting is used for Sanitary Hardware. Its installed in Wash Rooms with high humidity and temperature, making it susceptible to Corrosion. As a requirement, after polishing, we electroplate as per ASTM B456 service level 2 and its ASST requirement is 24 hours.

产品技术难点说明:

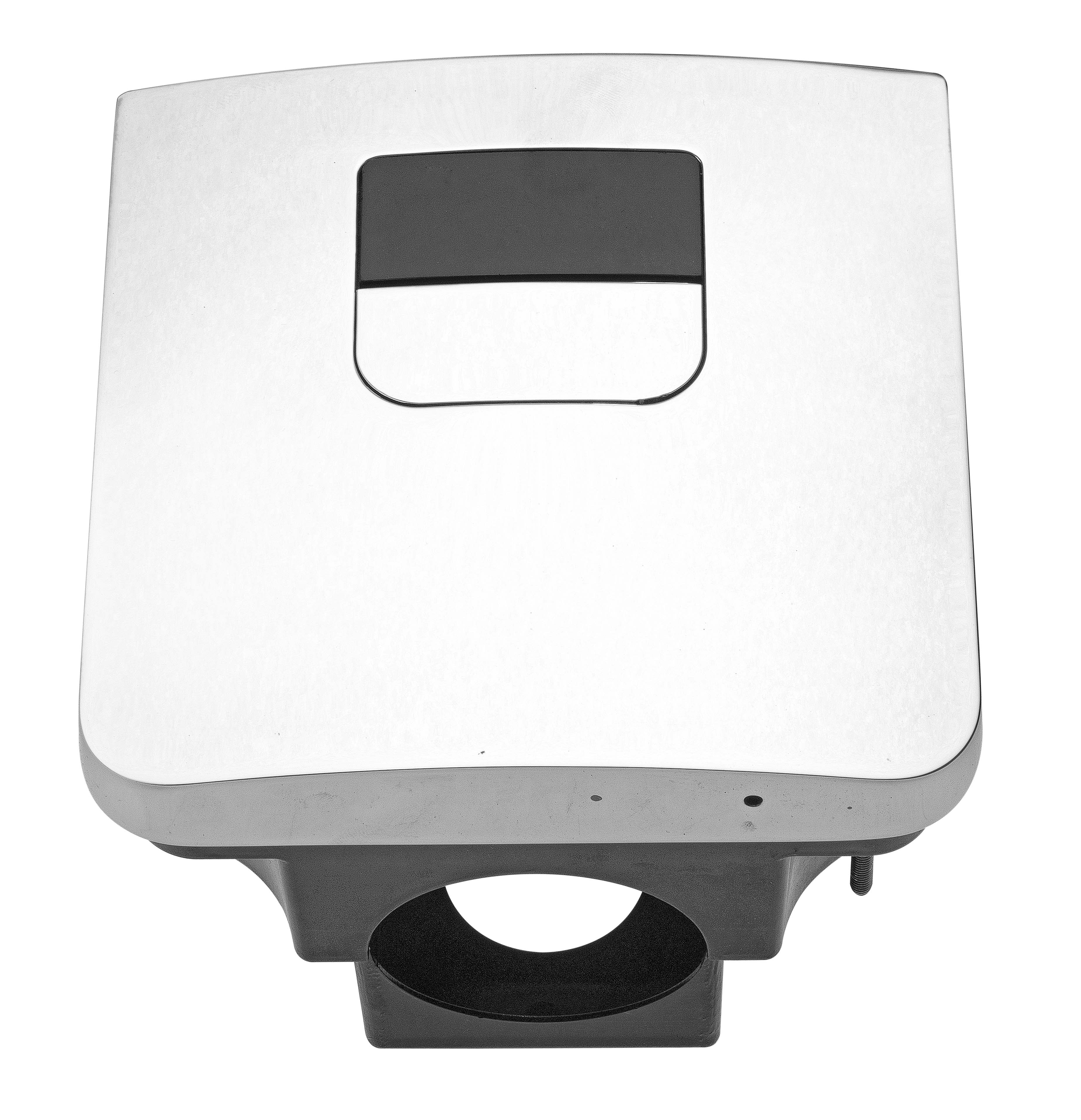

Sensor Plate

• Very Large Size (160 x 160) & Thin Wall (2.5mm)
• If filled from one edge -Long travel and bends
• Large Window to Obstruct smooth flow of metal
• Six locks and 4 tabs have to be provided in tool.

Sensor Activation Button

• Perfect round ends required
• The “Stiffners” provided to reduce weight for ABS sticks in “Tool Fixed half”- casting warps.
• Round ends have “sharp fins”-cause excessive deposition
• Product geometry does not provide “Jig Holding” position

产品技术难点-图片:

铸件重量(单位:kg)：0.520 Kg

合金品牌及牌号: Zamac 3

产品典型特点：
Customer’s product is used in Wash Rooms. It is “sensor activated” water flushing system. The product facia during initial launch was made by ABS plastic. Product was not well received. DST Industries converted the “Face plate and activation button from ABS to Zinc Alloy, wherein no other customer parts were modified. All characteristics of ABS part were incorporated in Zinc alloy casting.
The product has been successfully relaunched and well received.

产品生产关键要求：
Casting requirements : The surface should be free from any visual defects. It should be dense, so that it can be mirror polished to perfection. The casting should not twist while ejection. Two ends height difference on surface plate should not be more than 2mm. The 4 tabs creates surface depression during die opening. This is to be avoided.
Electro Plating requirements : Cu-Ni-Cr Plating as per ASTM B456 service level 2. ASST requirement is 24 hours.

针对技术难点采取的措施:
Sensor Plate
• Used The “large window” as feed position
• Used “IZA developed taper runner theory” to design accelerated flow to fill thin sections.(yield was 85% )and no vacuum was used.
• 6 “Inclined ejectors” were provided
• Design of “Inclined ejectors” was modified to prevent warpage
• Tabs were rounded to reduce depositions


Sensor Activation button

• Geometry modified – Stiffners removed from certain sections
• Geometry modified – Sharp edges at both ends were rounded
• Special tool & fixture made to create round ends for smooth movement
• ABS to Zamac3 redevelopment successful
• Product Re-Launched and Well Received by Market

针对技术难点采取的措施-图片:

铸件尺寸(单位:mm): 36.5*8*7.3 mm

压铸机品牌：

模具生产商：
苏州圣美特压铸科技有限公司

铸件使用场合、工作条件：
与电子产品塑料零件组装

产品技术难点说明:

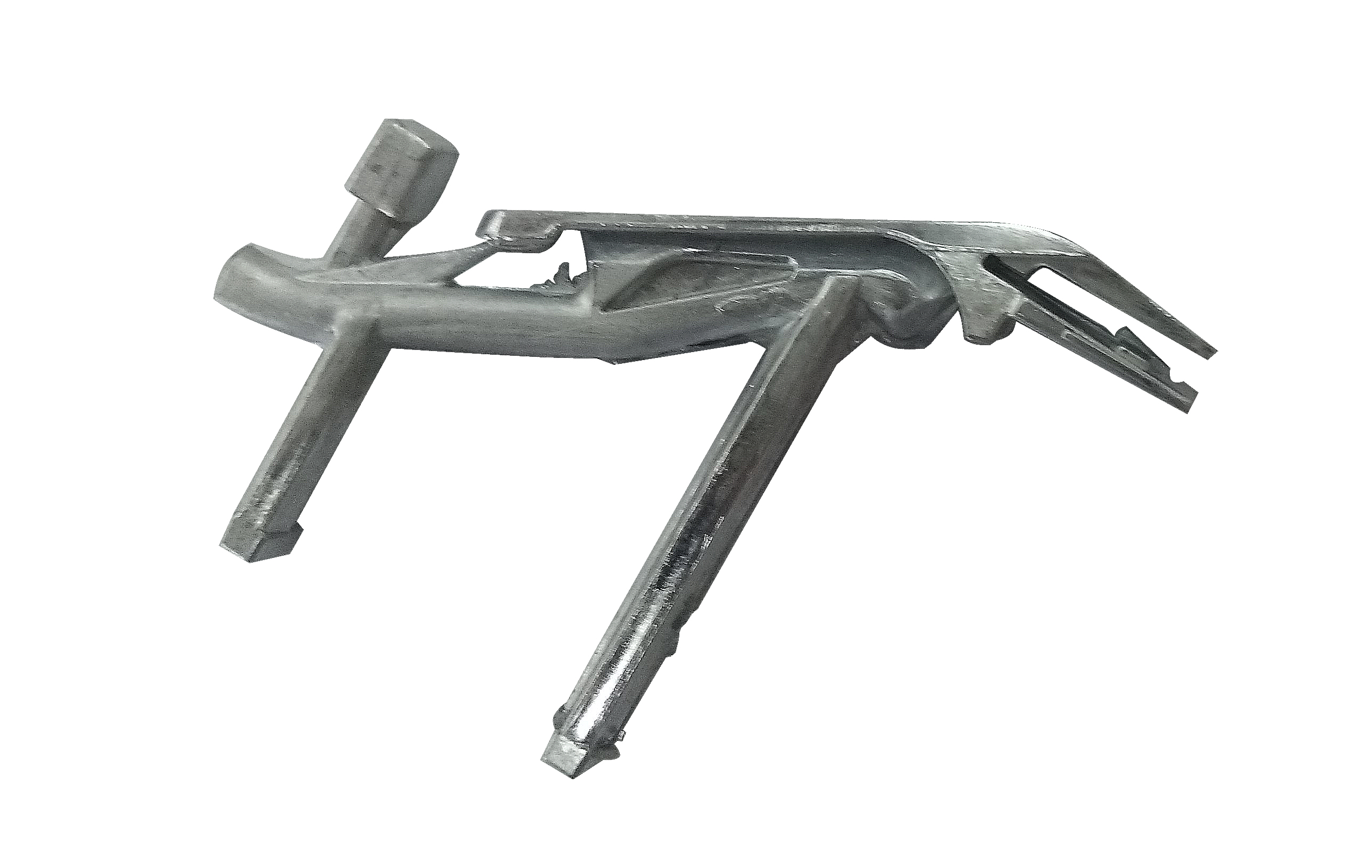

产品密度要求，表面需要抛光电镀

产品技术难点-图片:

铸件重量(单位:kg)：0.0025Kg

合金品牌及牌号: Sigma

产品典型特点：
使用多轴快速压铸机生产 每小时可以达到800模 表面抛光镀铬

产品生产关键要求：
外观件

针对技术难点采取的措施:
完成品

针对技术难点采取的措施-图片:

铸件尺寸(单位:mm): 10.8*7.4*5.9 mm

压铸机品牌： AK-500

模具生产商：
瀚祥模具有限公司

铸件使用场合、工作条件：
在低于200℃，无酸雨环境下使用不会变形腐蚀等

产品技术难点说明:

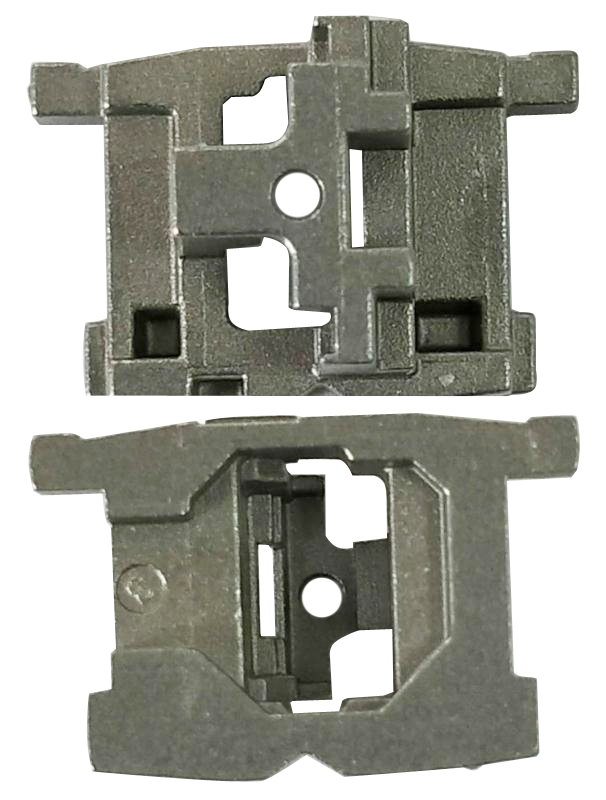

要求下图产品结构件，形状比较复杂，需要一次成形，没有飞边毛刺，没有后续加工工程。

产品技术难点-图片:

铸件重量(单位:kg)：0.00088kg

合金品牌及牌号: ZDC-2

产品典型特点：
结构件，形状复杂，比较小，需要一次成形。

产品生产关键要求：
产品必须一次成形，无追加工工程，节约成本

针对技术难点采取的措施:
对策：增加模具入子配合件，提高模具研配精度。

针对技术难点采取的措施-图片:

铸件尺寸(单位:mm): 150*150*100 mm

压铸机品牌： 伊之密

模具生产商：
宁波赛尔斯金属制品有限公司

铸件使用场合、工作条件：
汽车外后视镜

产品技术难点说明:

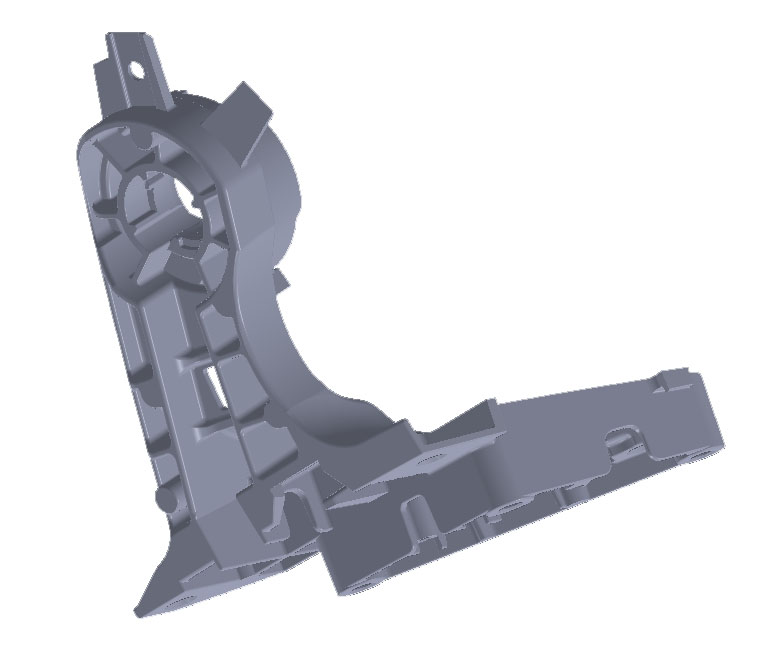

例：下图红色产品整体L型弯折角度要求极高，须控制在正负在0.5°以内。

产品技术难点-图片:

铸件重量(单位:kg)：0.22Kg

合金品牌及牌号: Adc12

产品典型特点：
产品成型复杂，产品结构特殊，变形控制困难。

产品生产关键要求：
产品角度变形要求很高，模具及压铸工艺保证

针对技术难点采取的措施:
例：如下图滑块位置添加了顶杆。

针对技术难点采取的措施-图片:

铸件尺寸(单位:mm): 260*270*78 mm

压铸机品牌： 伊之密

模具生产商：
宁波赛尔斯金属制品有限公司

铸件使用场合、工作条件：
发动机舱

产品技术难点说明:
产品加工精度、外观、气密性要求高

产品技术难点-图片:

铸件重量(单位:kg)：1.533kg

合金品牌及牌号: Adc12

产品典型特点：
产品壁厚，要求无沙孔等铸造缺陷；气密性实验油道充气压1.0MPa，保压2min不得有渗漏；冷却水腔充气压0.4MPa，保压1min不得有渗漏现象。

产品生产关键要求：
产品外观、公差尺寸、密封性等

针对技术难点采取的措施:
采用科学压铸工艺及先进设备，加工使用精密CNC作业，先进浸渗工艺保证气密性要求

针对技术难点采取的措施-图片:
